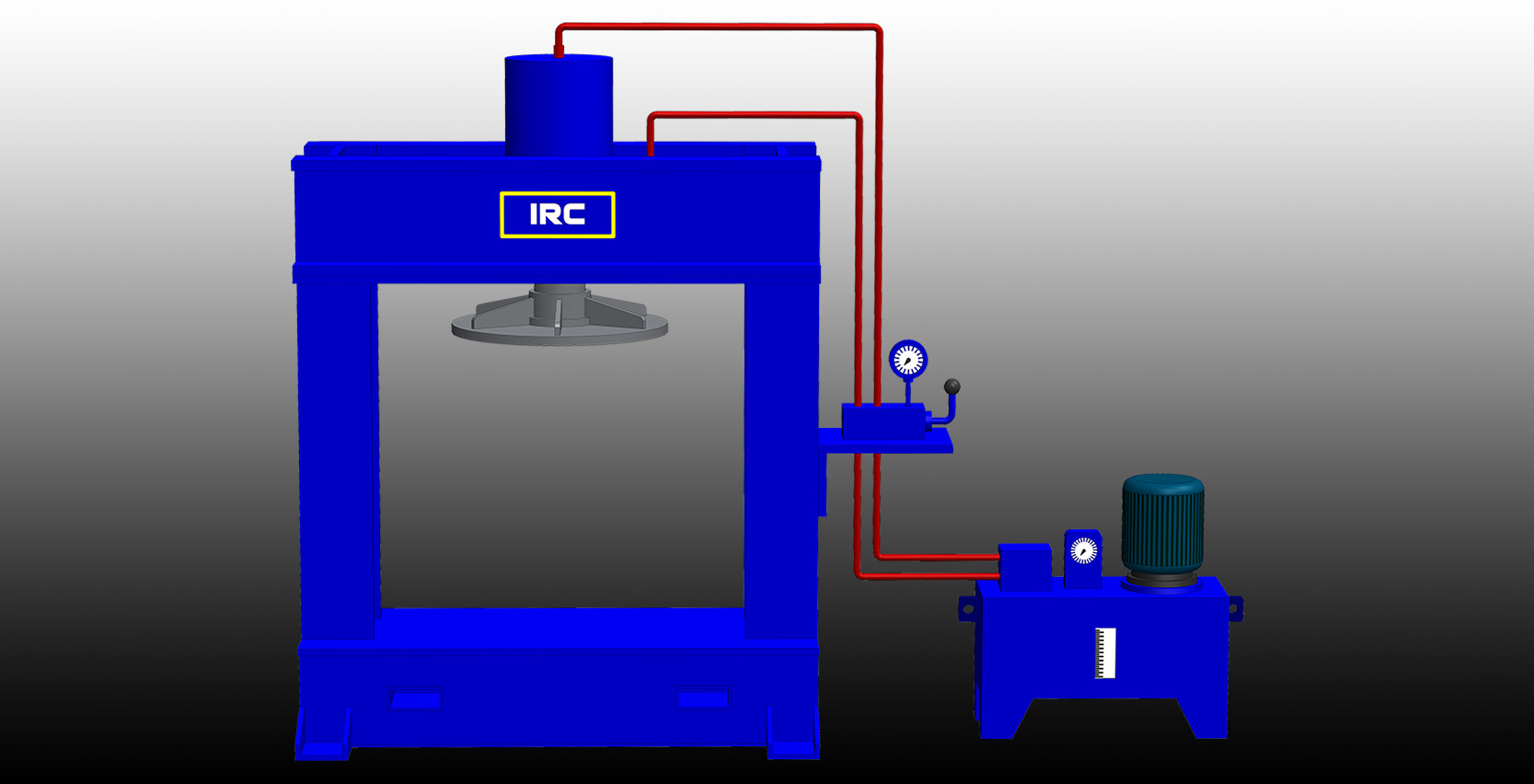

We offer SOLID tyre Fitment Press for mounting and demounting of all SOLID Tyres
Offered with a complete set of fitment fixture to ensure Easy, Safe & Secure fitment of tyres on the
rims.
Fixtures for fitment include set of Taper Cone, Cage & Base plate for every ID profile in all Solid tyre
ranges.
Available in IRC-80 / IRC-120 / IRC-160 / IRC-200 / IRC-240 Tons
Compatible to fit all popular sizes of Solid tyres
| SI.No | Model | IRC 80 | IRC 120 | IRC160 | IRC 200 | IRC 240 |
| 1 | Capacity (Tons) | 80 | 120 | 160 | 200 | 240 |
| 2 | Max.Tyre Dimension (Inch) | 12 Inch | 15 Inch | 20 Inch | 25 Inch | 33 Inch |
| 3 | Working pressure (Bar) | 250 | 250 | 250 | 250 | 250 |
| 4 | No.of cylinder | one | one | one | one | one |
| 5 | Stroke | 400 | 400 | 400 | 500 | 600 |
| 6 | Motor | 3 PH, 5 HP, 415 V AC, 50 Hz | 3 PH, 5 HP, 415 V AC, 50 Hz | 3 PH, 7.5 HP, 415 V AC, 50 Hz | 3 PH, 7.5 HP, 415 V AC, 50 Hz | 3 PH, 10 HP, 415 V AC, 50 Hz |
| 7 | Construction | Fabricated H Frame | Fabricated H Frame | Fabricated H Frame | Fabricated H Frame | Fabricated H Frame |
